Red Oak Alu-clad Crank Windows Project in Kentuck
This school project is a complex made up of sophisticated classrooms, dorms, restaurants, and venues. It demanded windows and doors that would maintain a good energy-efficient performance and provide a classic aesthetic atmosphere.
In Louisville, the summers are hot and muggy, the winters are very cold and wet, and it is partly cloudy year-round. Our energy-efficient integrated glazing units (IGU) feature double-pane glass, warm-edge spacers, argon gas fill, Low-E coatings, and fully tempered glass, they can not only create a comfortable and natural indoor environment but also save electricity bills and heating bills.
Doorwin products are made from the strongest material for windows and doors, meaning they have the strength and size capacity for this project. We are an industry leader in high-end aluminum & solid wood windows and doors with 15 years of experience, so you can trust that our products are built to last. And with 25 years of warranties in the business, we can offer you and your client peace of mind.

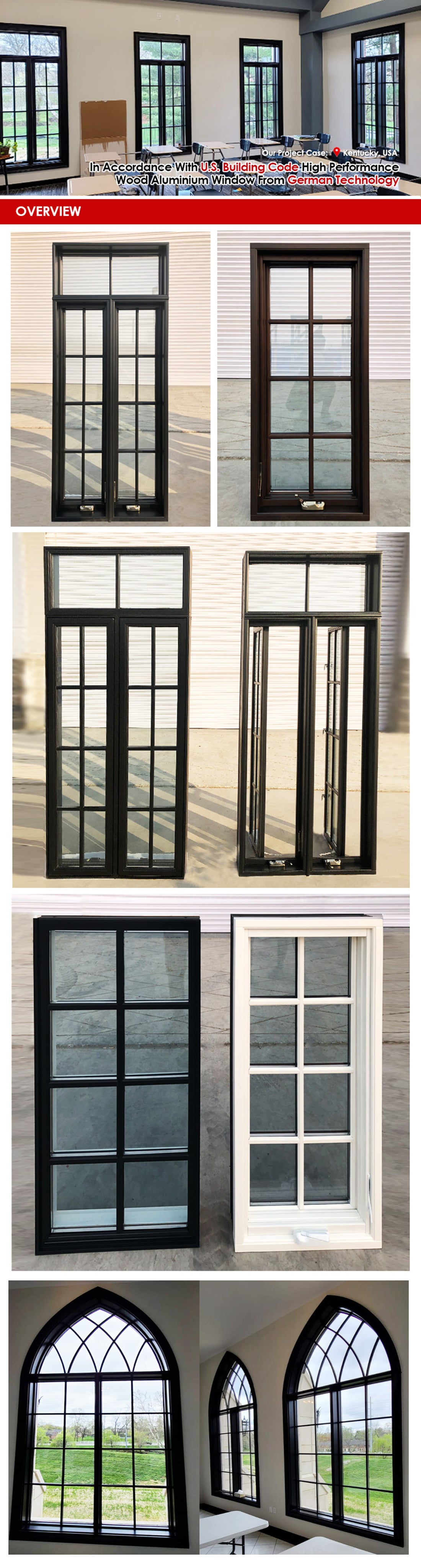

Crank out windows are one kind of casement window that is hinged at the side and open outward like doors but with a hand crank, and they operate by the crank system. They are ideal for hard-to-reach places (eg. above the kitchen sink) as the crank design allows for easy opening and closing. And the screens normally are placed on the inside of the window, where they are more protected from the elements.
Doorwin WOOD+ 163s Crank Out Casement Windows provide excellent ventilation. Superior energy efficiency due to compression seal technology. Then let me tell you the advantages of this series of products.
In this series of products, our best-selling profile is alu-clad wood, because the crank windows are the classic design and high-end products, customers don't just want the retro look, they also want good energy-efficiency performance. Solid wood is the best insulation profile, it is favored in many residential applications because of its appearance and traditional place in house design. From a thermal point of view, wood-framed windows perform well with frame U-factors in the range of 0.3 to 0.5 Btu/hr-sq. ft-°F. But the disadvantages are also obvious, solid wood is more prone to damage and corrosion, requiring higher maintenance costs, so we clad the exterior face of the frame with either vinyl or aluminum, creating a permanent weather-resistant surface.
Clad frames thus have lower maintenance requirements, while retaining the attractive wood finish on the interior. Many clients would place the alu-clad wood profile as the first place on their list, but there is only one disadvantage, which is the overall cost may be too high.
So according to the market needs, Doorwin also provides thermal break aluminum profile (For budget-friendly plans) crank out casement windows in various sizes, contact us for details if you have any recent plans.
Glazing Configuration
Because the project is complex including classrooms, dormitories, cafeterias, and other functions, it needs a good energy-efficiency performance. We have had a lot of projects in the USA and Canada before, so we fully understand the local building code requirements. Due to the climatic characteristics where the project is located, there are very clear requirements for the insulation performance of windows, so our products have the NFRC certifications to ensure that your project will pass the inspection after completion of the project.
We decided to go with double glazing. Our energy-efficient integrated glazing units (IGU) feature double-pane glass, warm-edge spacers, argon gas fill, Low-E coatings, and fully tempered glass, they can not only create a comfortable and natural indoor environment but also save electricity bills and heating bills around 300~700USD per year according to whole building’s fenestration areas. That’s a real bargain compared to choosing a regular glazing set.
Doorwin’s Hardware & Accessories
For the Hardware System, Doorwin uses Siegenia multi-point locks, hinges, and handles from Germany. With top burglar-resistant, the handles come with a long backplate in solid aluminum. The cylinder is practically inaccessible and the long backplate is almost impossible to remove. And the high-quality components, each is capable of sustaining 400lbs for high security and longevity. The friction stay is tested for more than 400,000 cycles, to put this in perspective, a window that is opened and closed 10 times a day should last at least 100 years before failure.
The multi-point locks system also provides better sealing and contributes to the insulation performance of the whole building. Together with Technoform Bautec’s insulation edge bond and sealant strips, these make up the top insulation and energy-saving performance of our products.
Doorwin Exclusive Simulated Divided Lites With Warm Spacers
Doorwin’s simulated divided lites are permanently adhered to both sides of the glass and are available with a Technoform Bautec™ high-performance spacer bar installed between the glass to create even more depth that resembles authentic divided lites.
All these detailed decorations are customized to suit your aesthetic requirements without any loss of energy efficiency.
Free Design Assistance
With our own expertise, we provided the no-cost design development and contract documentation with CAD & BIM drawings, including elevation, details about the project, and installation help.
Before production, we will provide accurate sample drawings, which will clearly show the cross-sectional pattern, size, opening method and direction, pattern of the warm spacer, and the installation nodes. We will not go into production until you have signed off on the drawing to ensure that you receive a final product that meets the exact requirements of your project.
01 / Easy Installation
Firstly, is easy installation. We have several international patents to reduce clients’ labor costs, such as our unique flanges and assembly type tubular design. It helps to easily install the windows. You cannot easily find the nailing flange in other companies, which is what sets us apart from our Chinese counterparts is that all our products are equipped with nail fin structures for quick and easy installation. Labor costs during installation may exceed the window and door prices, therefore, the longer the project takes, it means you are losing money. We help our customer make the work done in a shorter time. In this way, we save more money for them.
02 / Maintenance Free
Secondly is easy to repair. Our company have been providing quality windows and doors to the USA for years, our customers are satisfied with our window quality and performance, they get back to us with testimonials and they are glad to re command us to new buyers. We provide the top-quality profile and fully tempered glass, top quality hardware of Germany origin made brand. In our opinion, quality means never having to compromise. Our research and development team made sure that you still get unrivaled thermal insulation, high performance, and top-quality hardware on the 10 YEARS WARRANTY. The TPS glazing ensures that no air leakage and fogging issues on (IGU) products for 25 YEARS WARRANTY.
03 / Minimum Manufacturing Time
Thirdly is about the manufacturing time. It’s common hesitation when you buy windows from a foreign company. I would like to send you pictures and videos to have a look at our factories. We can finalize the production in about 18 days and shipping to you cost 30 days if it’s an urgent project. In about 45 days you will receive your windows. We are taking the same manufacturing daytime as you buy locally.
Our products are manufactured in 3 wholly owned manufacturing plants across China, a large state of the factories, sufficient to supply the largest projects, whilst remaining competitive. Over 100,000㎡ factory area with 500,000㎡ /year production capacity, so that means we can make the fastest possible production and fastest delivery of our products to meet clients’ time demands.
Contact us anytime if you have an interest in our products, click the pic below
DOORWIN AL+ 70 Awning Windows
SAVE INDOOR SPACE
Awning Windows Offer Ventilation
And Versatility
Popular In Window Combinations
Great Ventilation
Can Have A Contemporary Or Classic Look
Add Light To A Room That May Require Privacy Like
A Bedroom Or Bathroom
T66 AVIATION GRADE
Ultra-High Precision & High Strength
Meet North America Standard
The Thickness (For Window) ≥1.6mm
The Main Load-carrying Parts ≥2.0mm
GLASS
LOW-E SILVER COATING
LOW-E Technology Can Helps Homes Stay
Cooler In The Summer And Warmer In The Winter.
+WARM EDGE SPACER
Technoform Bautec’s TGI-Spacer M – Our warm-edge spacer technology minimizes thermal bridging and has one of the lowest failure rates in the industry.
GERMANY BRAND
ORIGINALY IMPORTED
Ergonomic Design
Excellent Anti-Theft Performance RC2
Germany Roto / Siegenia Optional
HIGH ENERGY-EFFICIENCY
Our High-precision Polyamide Is From Technoform Bautec- PA66 Nylon.
Our Thermally-broken Aluminum Profile Systems Utilize The Latest Polyamide And Low-Emissivity Foil Technologies To Minimize Thermal Bridging At The Frame And Sash.
ANTI-THEFT + ANTI MOSQUITO
Quality Of American Military Industry
304 S.S Protection Screen
SUPERIOR RESISTANCE
No Scratches / Flaking / Fading
Satisfy All Your Imagination About Color
Fluorocarbon Coat Finishing Is Available At Request For Extreme Environmental Conditions.
OUR 3 WHOLLY OWNED
FACTORIES IN CHINA
50+ PRODUCT
TESTING CERTIFICATIONS
NFRC / NAMI / CE / WDMA / CSA / ISO / AAMA / NZS / AS
10+LABELS
Provide Clear Instructions
Save Installation Time
5 LAYERS PACKAGING
Who is Responsible
for the Customs Clearance?
Arrival of Goods
Submit Customs Clearance Documents to Customs
Tax (Paid By Us or By the Client)
Pick Up the Goods
What Should We Do If We Do If We Buy Goods, But We Don’t Know A Forwarder?
We,doorwin, Have Our Own Shipping Agent And Forwarder,who Could Take Good Care Of The Shipping, Custome Clearance, Documents, And Delivery To The Warehosue Or Job Site.
What Is The Delivery Time?
For Regular Purchase Orders, The Productions Time Will Be 3~5 Weeks From The Date Of Getting The Approved Shop Drawings. Shipping Time Will Take Another 4~5 Weeks From Our China To Local Seaport Or Warehouse.
What Is Your Payment Items?
Generally,50% Deposit Payment By Bank Wire Transfer Or Credit Card, Balance
Payment Before Shipping Is Accepted.
